AGRAS MG-1 Flying Platform

An ingenious 8 rotors UAV designed specifically for advanced agriculture applications

dji agras mg-1
agras mg-1

Stable Drone for Precision Agriculture

The new Agras MG-1 flying platform is the most stable and best performing flying platform for precision application of liquid pesticides, fertilizers and herbicides in agriculture. This amazing new platform creates totally new opportunities for the efficient management of agriculture related tasks. Including a 8 rotors design, the Agras is your best guarantee that even if one of the rotors fails, it will not compromise the stability and flight competence of the drone. Carrying a 10KG payload that is capable of covering 7-10 acres per hour of operation, this model is 40-60x faster than manual agricultural spraying solutions!

The combination of the Triple Filter System with the centrifugal cooling system prevents corrosion, dust and other particles from eroding the filters, thus ensuring the motors remain cooled and fully operational. The Intelligent Smart Flight Functions include Smart Mode, Manual Mode, and Manual Plus Mode, giving pilots the flexibility of pre-programmed safe flight operations with the choice of manual overrides. The DJI MG-1 Crop Sprayer is ready to fly out of the box, with all the necessary accessories.

agras mg-1

Intelligent Foldable Design

The MG-1 design is based on a Y-type folding structure that can be installed without the use of any additional tools. Motor arms fold inwards making the aircraft compact and easy to transport. You can place it even in the trunk of your car before driving to the field. Made from high-strength carbon fiber materials, the body frame is light yet durable and able to withstand the harshest conditions.

agras mg 1

Advantages You Can't Ignore

  • Powerful stable octocopter design
  • Covers 7-10 acres per hour
  • 40-60 times faster than manual spraying
  • Extensive payload capacity of 10KG
  • Intelligent flight modes
  • Foldable design, stow-and-go simple transportation
  • Triple filter and centrifugal cooling
  • Accurate spraying with interchangeable nozzles
  • 4 application nozzles below the motors
  • Real-time safety features and system data protection
  • Microwave radar and terrain scans
  • Dedicated remote controller featuring Lightbridge 2

Maximum Efficiency

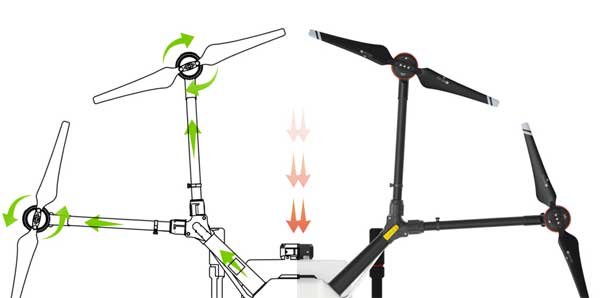

Devices and equipment used in precision agriculture and spraying are susceptible to dust and corrosion and damage. The costs associated with maintenance and damage prevention are very high. That's one of the main reasons why the use of aerial drones instead of ground manual operations is so cost effective. The MG-1 is designed with a sealed body and an efficient, integrated centrifugal cooling system. As it flies, the surrounding air enters the aircraft body via the front inlet, equipped with a triple filter system that keeps dust and particulate matter from entering. The air then passes through each of the aircraft’s arms to the motors, capturing heat from all components and the entire structure before exiting and dissipating the heat to the surrounding air. The combination of cooling and filtering increases the expected lifespan of each motor by up to three times.

agras mg-1
agras mg-1

Precise Accurate Spraying

Based on the specific requirements of each user or area that needs to be taken care of, the spray nozzles of the Agras MG-1 can be chosen accordingly, in order to optimize atomization, energy efficiency and the amount of sprayed liquid. The nozzles are resistant to wear and can be used for thousands of hours of effective spraying without degradation. In total, the MG-1 has 4 nozzles, each placed directly below a motor. The downward airflow generated by the propellers accelerates the spray, increasing its reach.

Advanced Flight Modes

The excellent easy to operate flight controller integrated with the Agras aircraft responds instantly and precisely to the pilot’s maneuvers. There are 3 flight modes to choose from - smart, manual plus and manual. The flight mode type will depend mainly on the terrain and the specific needs of each mission. With Smart mode, the flight can be easily planned with the press of a few buttons, without the need for mapping knowledge or other software, making the MG-1 not only the most efficient but also the most easy to use spraying solution. In Manual Plus Mode, the aircraft performs the same turns at the press of a button as it does automatically under the Smart mode, allowing for planning to be done on the fly for fields of irregular shape. Under Manual mode, the pilot freely navigates the aircraft.

agras mg-1

Terrain Scan and Fly

The Agras MG-1 has a built-in microwave Radar that scans the ground in real-time to automatically adjust height. Monitoring height along the flight means that the drone is capable of perfect application of its substances to the fields below. By integrating the microwave radar together with its intelligent flight control system, the aircraft adjusts its position to keep a constant, centimeter accurate, height above crops. Spray density is maintained even as the terrain rises and drops, so that the optimal amount of liquid is applied at all times.
