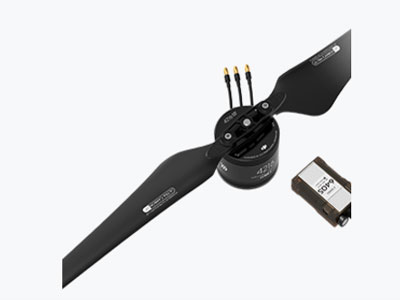

The E1200 is a fine-tuned propulsion system for multirotors weighing 15-33 pounds (7-15kg). This kit allows you to upgrade or build the flight system of your choice. With enhanced efficiency, safety, and reliability under extreme conditions, the E1200 unlocks greater possibilities for professional aerial photographers and enthusiasts. The Standard version includes 4216 motors, 40A smart ESCs, and 17-inch ultra-carbon folding propellers. Unlike the highly integrated Pro version, the Standard version’s components are separated, allowing you to work with a much wider range of frames.
One of the largest of the Z-blade series, these 17-inch propellers boost both efficiency and thrust. An advanced ultra-carbon fiber composite provides the rigidity of metal propellers but at a lower weight. The classic folding design protects your propellers while making transportation,simple and efficient.

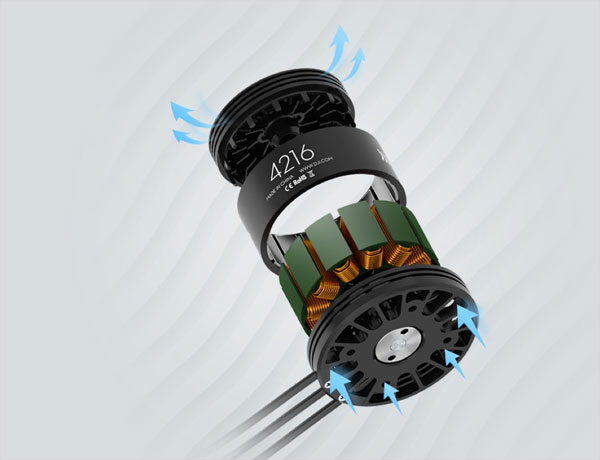

To increase the lifetime and reliability of your motors, a built-in centrifugal fan actively cools each one. The grid-shaped structure along the top allows efficient ventilation while keeping dust and other debris out. The rib-designed base enlarges the heat dissipation area by 200-300%, greatly enhancing the passive cooling power of the system.
The sine-wave drive ESCs increase power efficiency by capturing energy produced during deceleration. They also constantly gather and transmit diagnostic information on the status of your propulsion system in real time. Active braking provides better dynamic response.

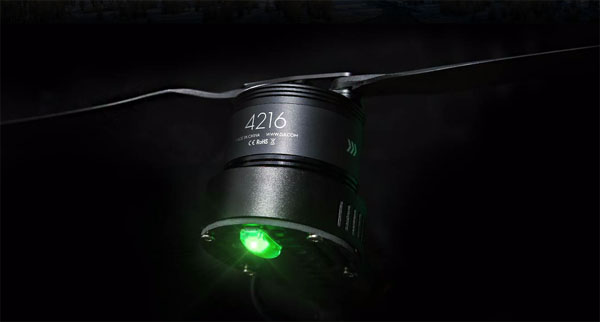

Each ESC receives real-time diagnostic data from the motor and visually communicates its status via high-visibility LEDs. This provides you with an instant warning in the event of abnormal motor function. Spark-proof circuitry protects your system when plugging in or unplugging the power source.
The E1200 features a duplex communication port, which allows you to easily and independently upgrade the ESC firmware with any free future updates. The E1200 Pro and E1200 Standard share the same core design and inner components.
The E1200 breaks new limits! Compared with 4114 motors and 15 inch propellers combo, the E1200 Standard can increase flight time by nearly 30% at the same takeoff weight. With greater thrust, the maximum takeoff weight can be increased by 1.8-2.4kg (when used on 6-8 axes). Moreover, theE1200 Standard is capable of working in temperatures up to 60˚C and taking off at altitudes 2000m higher than previous generations.
Take your creative enthusiasm to the skies!
E1200 Tuned Propulsion System
only
$209
