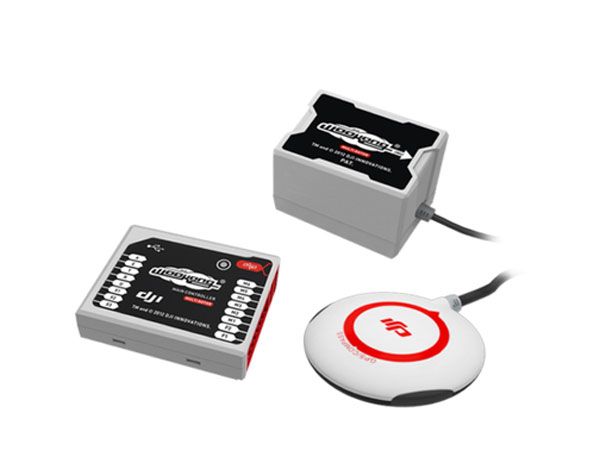

WOOKONG-M Flight Controller

Wookong is a complete stabilization system that controls all multi-rotor platforms for both commercial and industrial tasks.

Flight Controller

A great flight control solution for aerial photography

product image

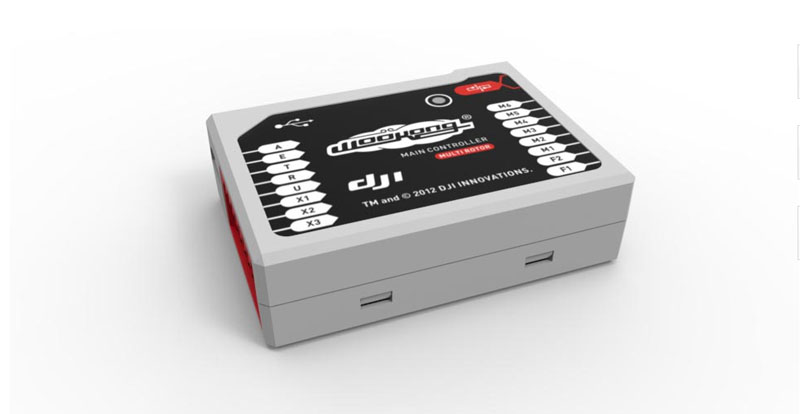

Wookong Multi-Rotor stabilization controller is a complete flight system for all multi-rotor platforms for commercial and industrial AP applications. Unlike others, WooKong allows the use of regular ESC commonly used in RC helicopters without any wiring modification; Heli mode setup provides a seamless transition for current Ace One AP professionals. WK-M utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renowned flight algorithm in autopilot and UAV field.

product advantages

Advantages You Can't Ignore

  • Multi-Rotor Stabilization Controller
  • 9 Types Of Multi-Rotors And A Customized Motor Mixer
  • Built-In Gimbal Stabilization Function
  • Support iPad Ground Control Station (GCS)
  • New Assistant Software for Smartphone
  • Supporting Futaba S-bus receiver
  • Power Monitoring Unit
  • Built-in Damper
  • Precise Position and Altitude hold
  • High Accuracy and Driving Handfeel
  • Motor arm/disarm mode
  • Multiple flight control mode/ Intelligent Switching
  • Point of Interest (POI)
  • RTH Switch from Transmitter
  • Support iOSD MARK II
  • Intelligent Orientation Control (IOC)
  • Enhanced Fail-Safe and Auto Go Home/Landing
  • Multi-rotor One-power Output Fail Protection
  • Two Levels Low Voltage Protections and Auto Go Home
  • Upgrade to Ground Station Control System
product image

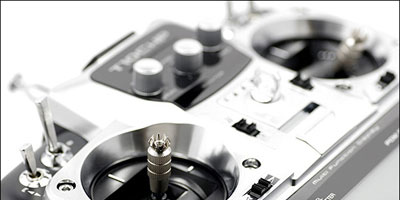

Supporting Futaba S-bus receiver

Compatible with almost all radios-PCM or 2.4Ghz/p>

product image

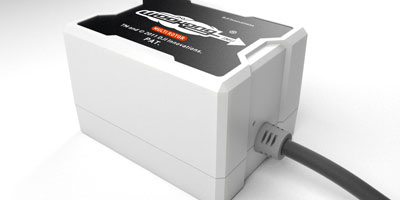

Built-in Damper

Small footprint and weight offer ease of installation in tight spaces, for various aircraft sizes.

product image

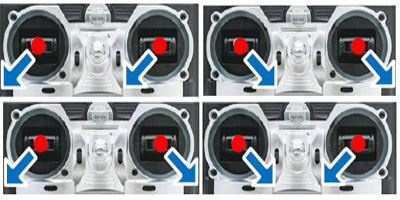

Motor arm/disarm mode

Start Motor: When using WKM, pushing throttle stick before takeoff will not start motors. You have to execute any one of following four Combination Stick Commands (CSC) to start motors. Stop Motor: We provide two options to stop motors: Immediate and Intelligent. Immediately Mode: By using this mode, in any control mode, once motors start and throttle stick is over 10%, motors will stop immediately when throttle stick is back under 10% again. In this case, if you push the throttle stick over 10% in 5 seconds after motors stop, motors will re-start, CSC is no needed. If you don’t push throttle stick after motors start in three seconds, motors will stop automatically. Intelligent Mode: By using this mode, different control modes have different way of stopping motors.

product image

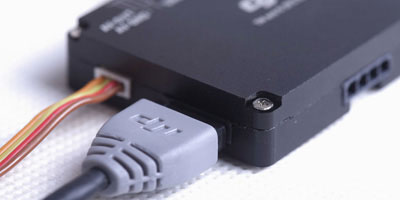

Support iOSD MARK II

The WooKong-M now support iOSD MARK II. This will undoubtedly give you a fantastic flight performance. Depending upon DJI’s accumulation of historic and reliable information integration technology, the iOSD MARK II can grab the most accurate first-hand flight data information in the shortest possible time.

product image

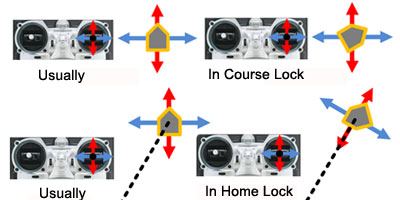

Intelligent Orientation Control (IOC)

Usually, the forward direction of a flying multi-rotor is the same as the nose direction. By using Intelligent Orientation Control (IOC), wherever the nose points, the forward direction has nothing to do with nose direction: In course lock flying, the forward direction is the same as a recorded nose direction. See the following figures (Mode 2): In home lock flying, the forward direction is the same as the direction from home point to multi-rotor.See the following figures (Mode 2):

product image

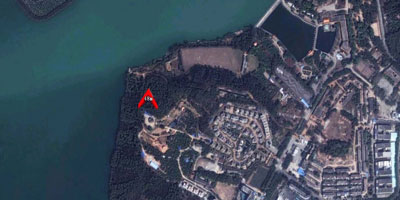

Upgrade to Ground Station Control System

WooKong-M can be upgraded to ground station which is a more powerful unmanned platform to satisfy the high requirement of customers. Now you just need to buy a DJI professional datalink and upgrade to the latest WooKong-M 5.26 firmware, then free Ground Station function is available without S/N and free 50 waypoints supported. Besides the 3D map, it also contains such ground control functions as joystick/keyboard control, one key takeoff and click & go.

Take your creative enthusiasm to the skies!

Choose your WOOKONG-M Flight Controller and get ready for an experience of a life time
